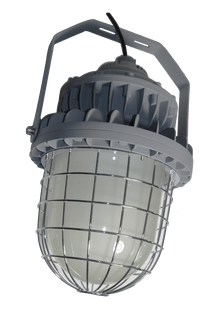

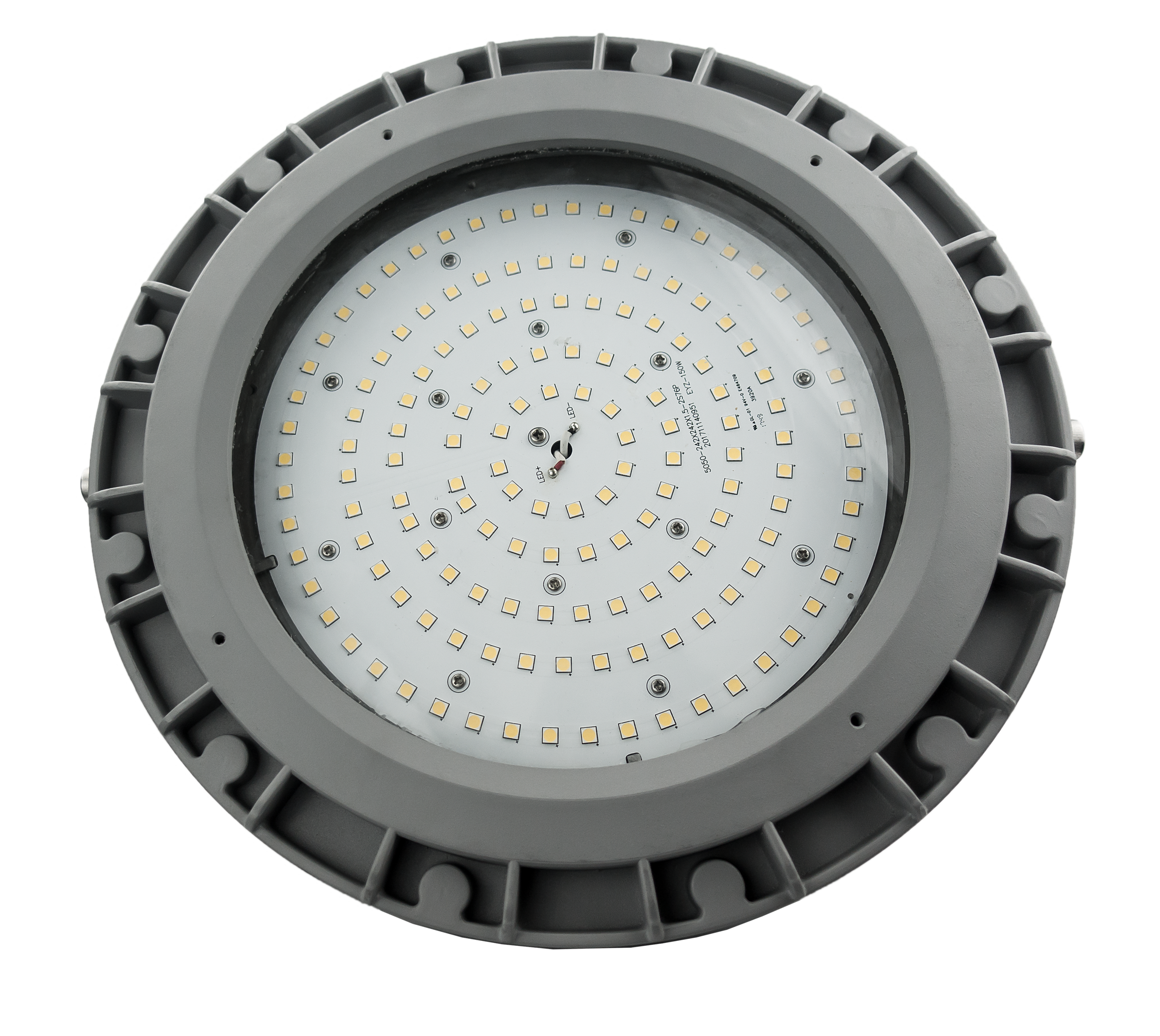

E Series Lights


Class 1 Division 1

features

Copper free aluminum
High vibration resistance
IP66 Waterproof
Reduces energy consumption up to 60%
Cree LED Chips
Mean Well driver
• Wide and narrow optics for uniform illumination
Surface mounting and pendant installations
5 Year Manufacturer’s Warranty

E Series Light Specifications:

E Specs.png

CERTIFICATIONS & RATINGS
NEMA 4X, IP66
UL1598/UL1589A/UL844
IECEX-ATEX-L70
CSA C22.2 NO.137/NO.250.0

CLASS I, DIVISION 2, GROUPS A,B,C,D

CLASS II, DIVISION 1, GROUPS E,F,G

CLASS II, DIVISION 2, GROUPS E,F,G

CLASS III


Applications:

This luminaire can be used as a spot light, down light, tunnel light, or strip light which can provide general illumination in hazardous locations, such as:

1. Oil refineries and Gas stations

2. Oil and gasoline loading docks

3. Distilleries

4. Painting manufacturing plants

5. Pumping stations

6. Mines

7. Vessels

8. Other high humidity, high temperature, or dusty locations
